Maxillofacial Locking Micro/Mini & Reconstruction Implant

1 / 5

Maxillofacial Locking Micro/Mini & Reconstruction Implant

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

10.01.02.04021000

Condition

New

Usage

Correct Deformities, Fracture Fixation

Using Site

Maxillofacial

Properties

Implant Materials & Artificial Organs

Material

Pure Titanium

Instrument Class

Class III

Warranty

One Year

Certificate

CE/ISO 13485

Package

Sterile Package

Origin

Jiangsu, China

Production Capacity

10000pices/Year

★

Product Description

Product Features:
Pitch-row of reconstruction plate is a specialized design for fixation during operation, improving the stress concentration phenomenon in specific areas and fatigue strength. The locking reconstruction plate acts as a built-in external fixation support, reducing mandible bite force and achieving ideal fixation even on osteoporotic mandibles. One hole selects two kinds of screws: locking and non-locked, providing versatile fixation options.

! Indication:

Mandible trauma: Comminuted fracture of mandible, unstable fracture, infected nonunion and bone defect.
Mandible reconstruction: For first time or second reconstruction, used for bone graft or defect of dissociative bone blocks.

✓ Features & Benefits:

Specialized pitch-row design to improve fatigue strength and reduce stress concentration.
Acts as a built-in external fixation support to reduce bite force.
Ideal for use even on osteoporotic mandibles.

Specifications

Model	Order No.	Item No.	Specification

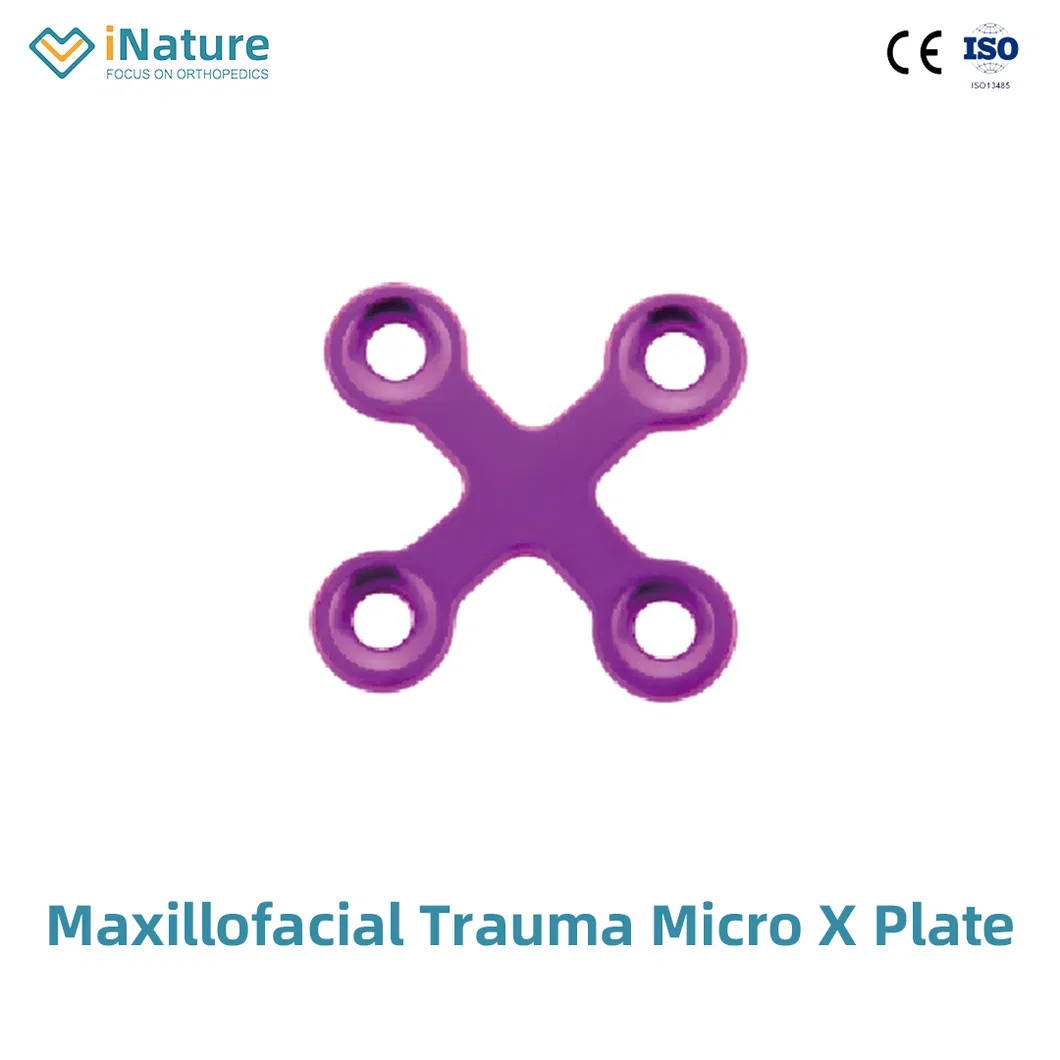

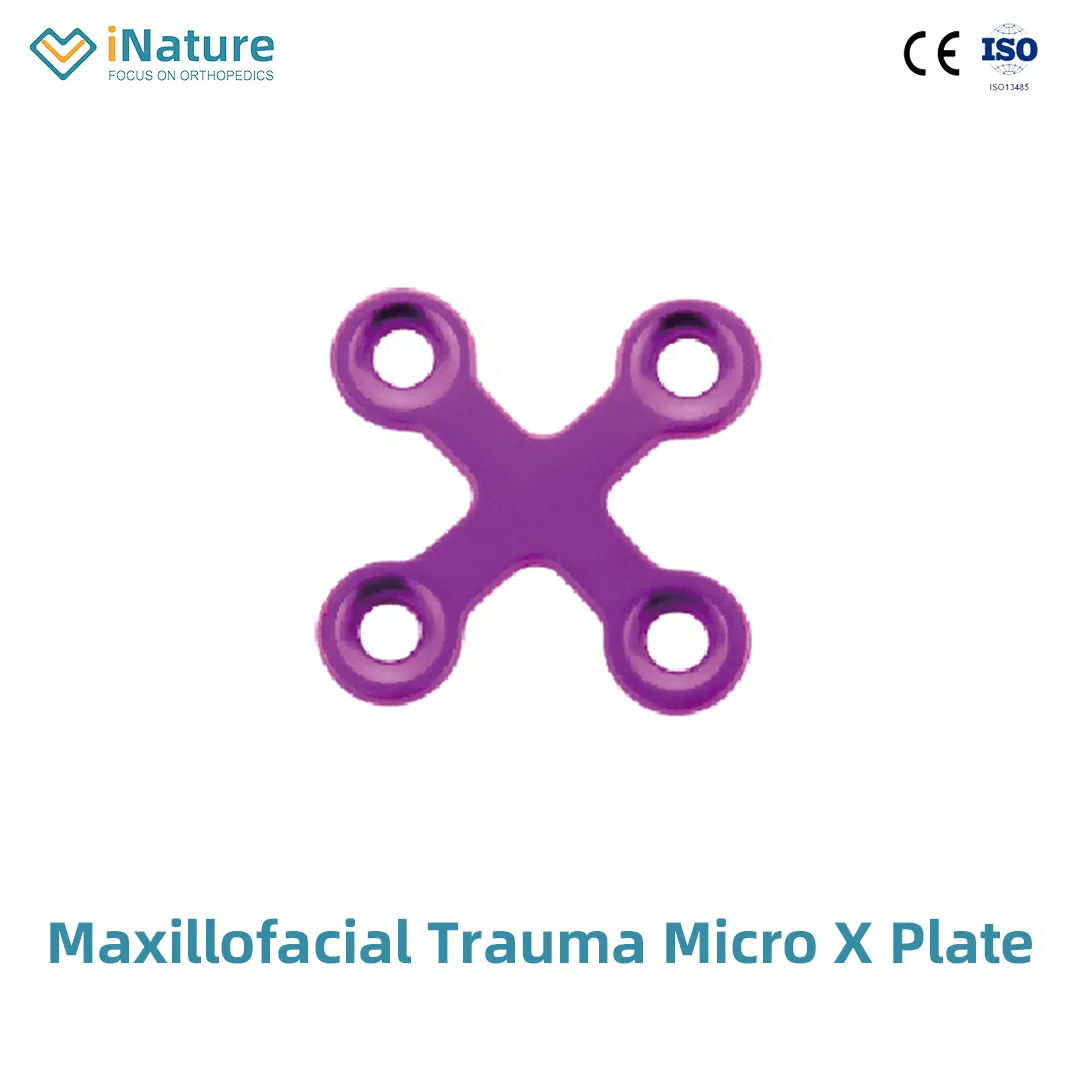

Micro Locking X-Plate	10.01.02.04021000	0666	4 holes, 0.6mm, 14mm

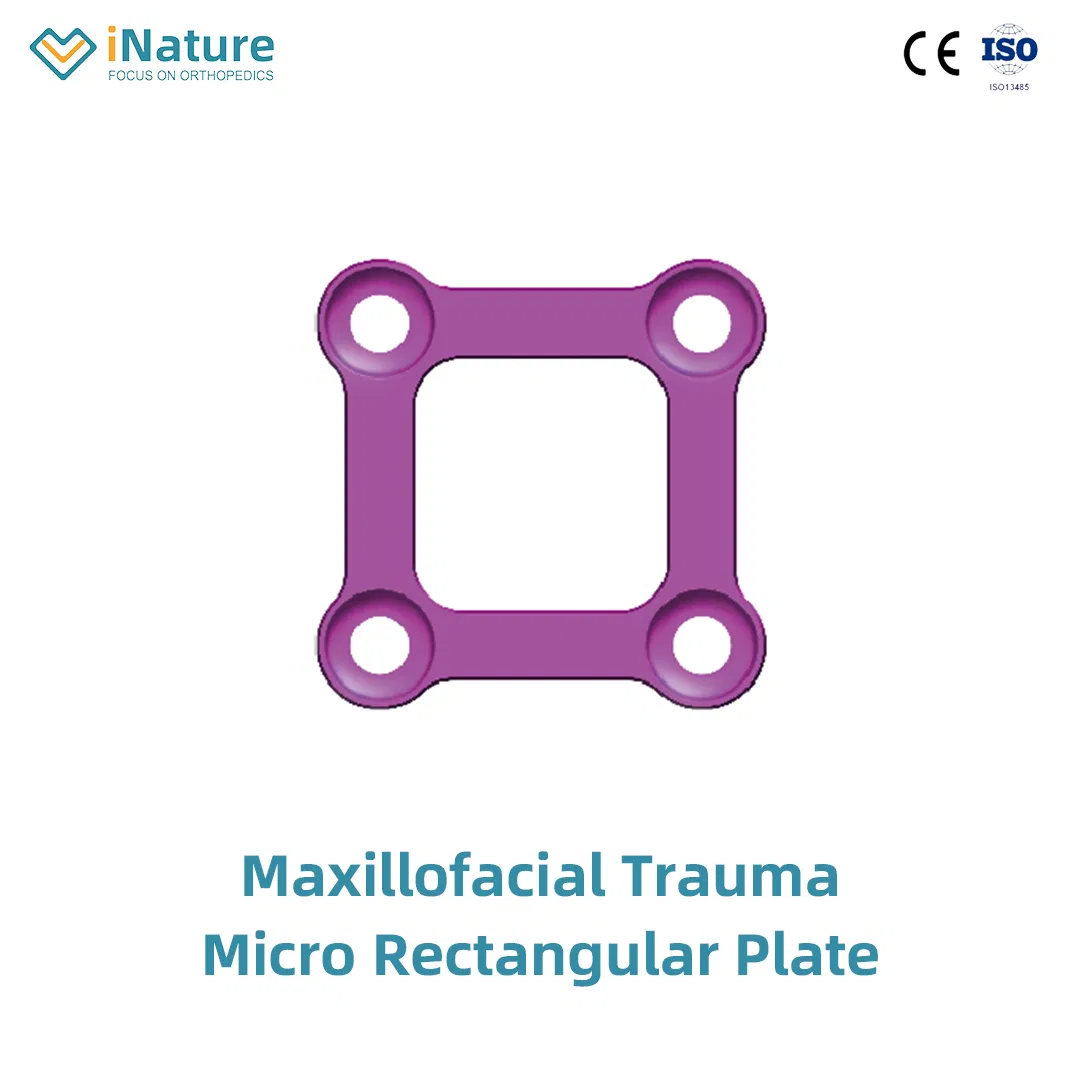

Micro Locking Rectangular Plate	10.01.02.04023000	0683	4 holes, 0.6mm, 14*14mm

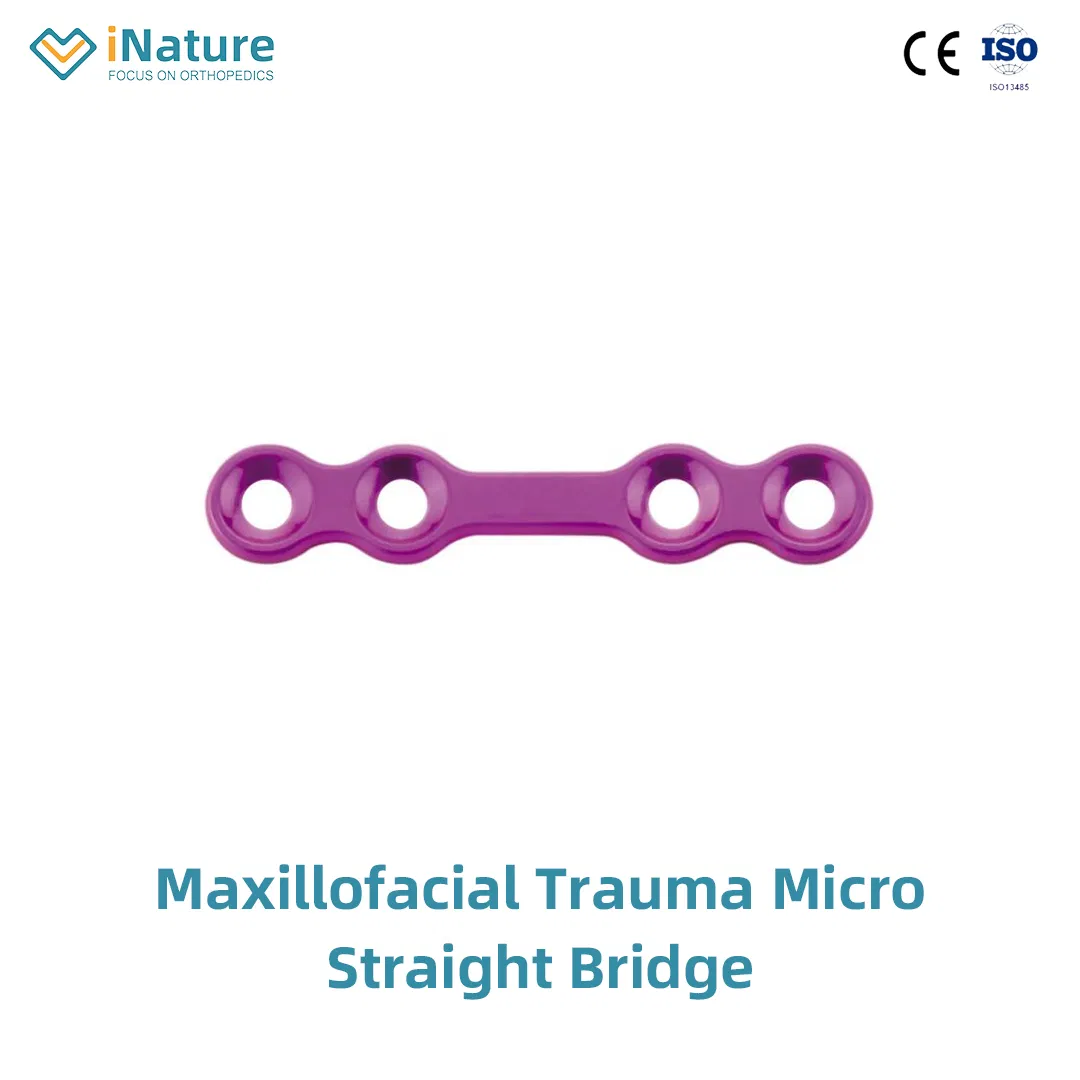

Micro Locking Straight bridge Plate	10.01.02.04011000	0901	4 holes, 0.6mm, 20mm

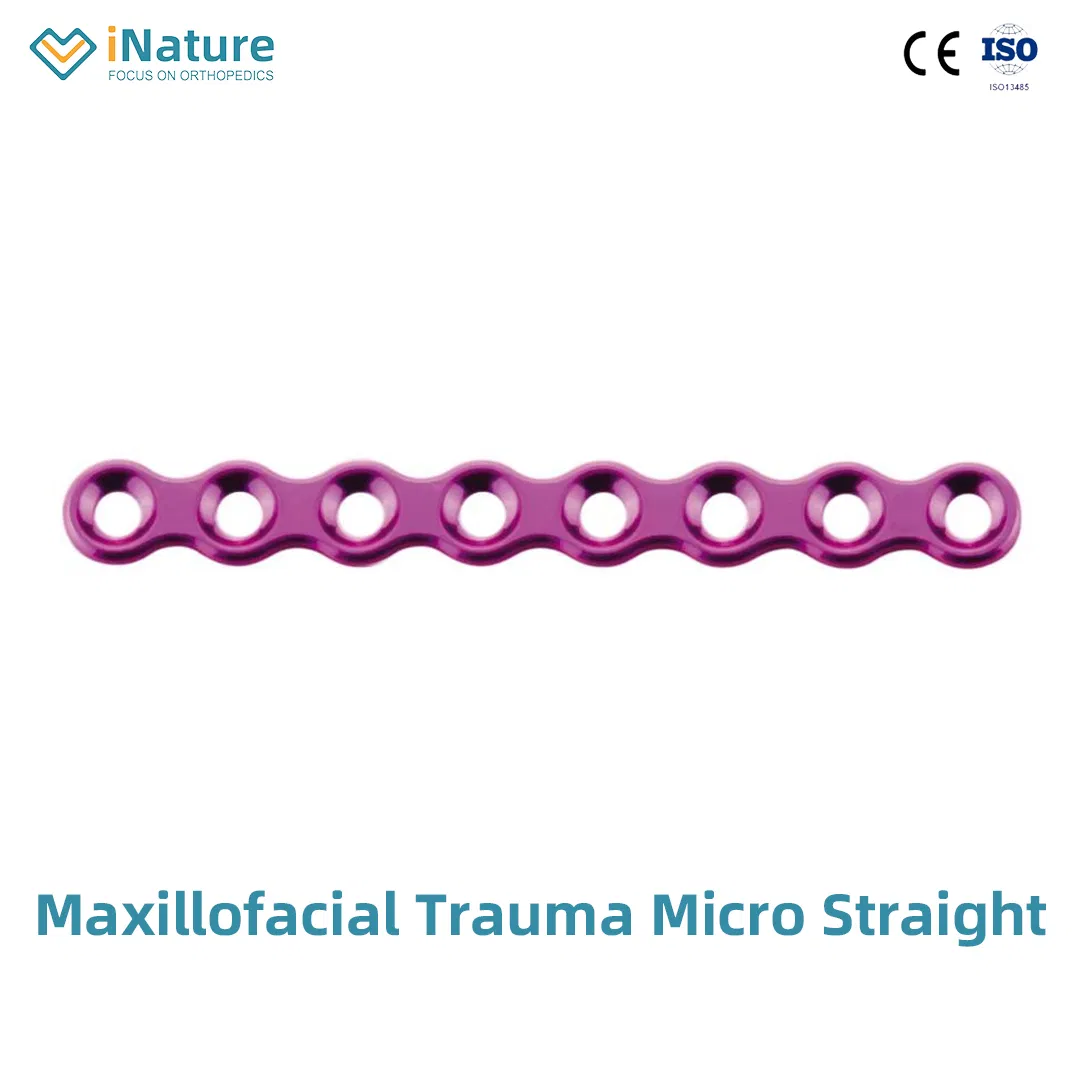

Micro Locking Straight Plate	10.01.02.06011000	0902	6 holes, 0.6mm, 24mm
Micro Locking Straight Plate	10.01.02.08011000	0903	8 holes, 0.6mm, 32mm

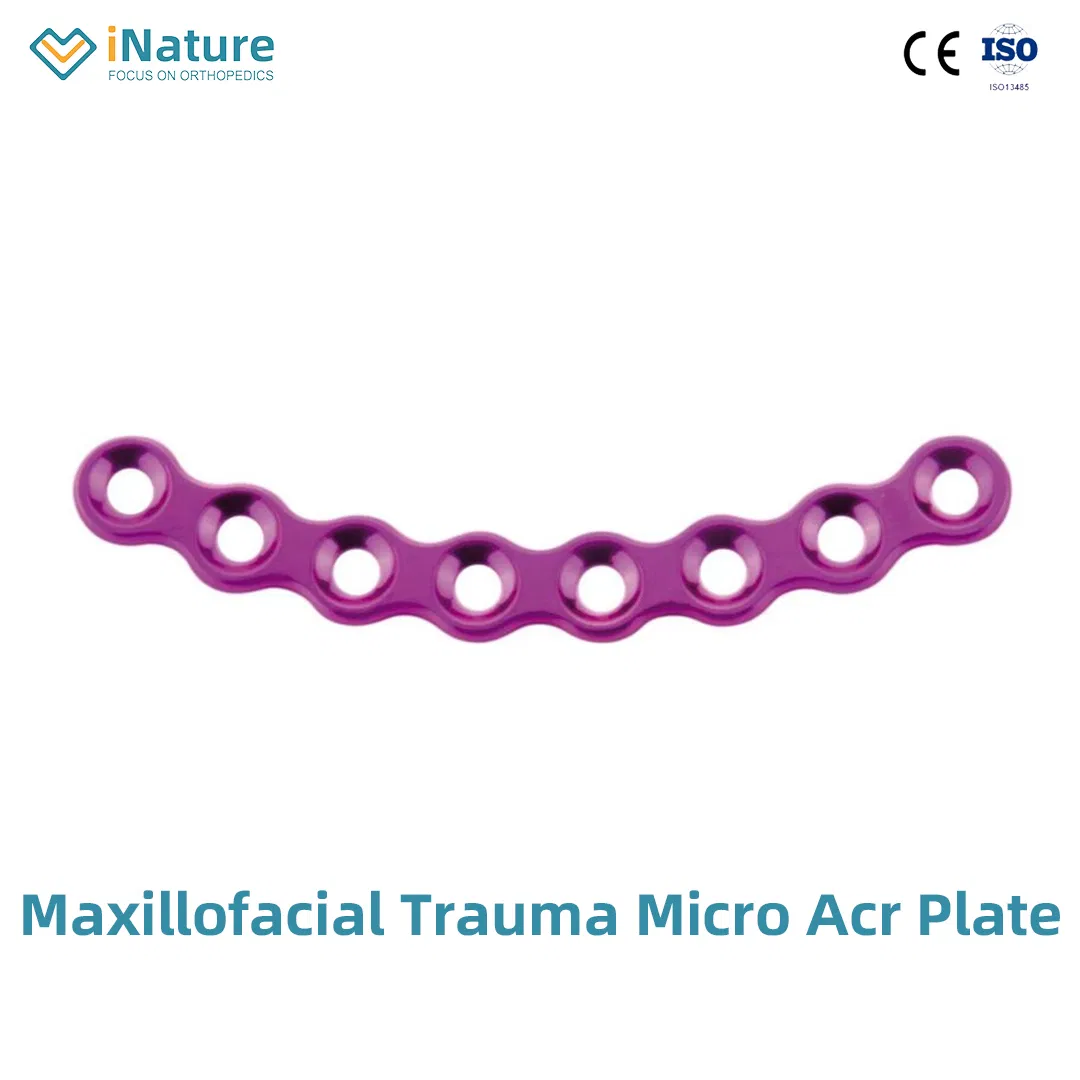

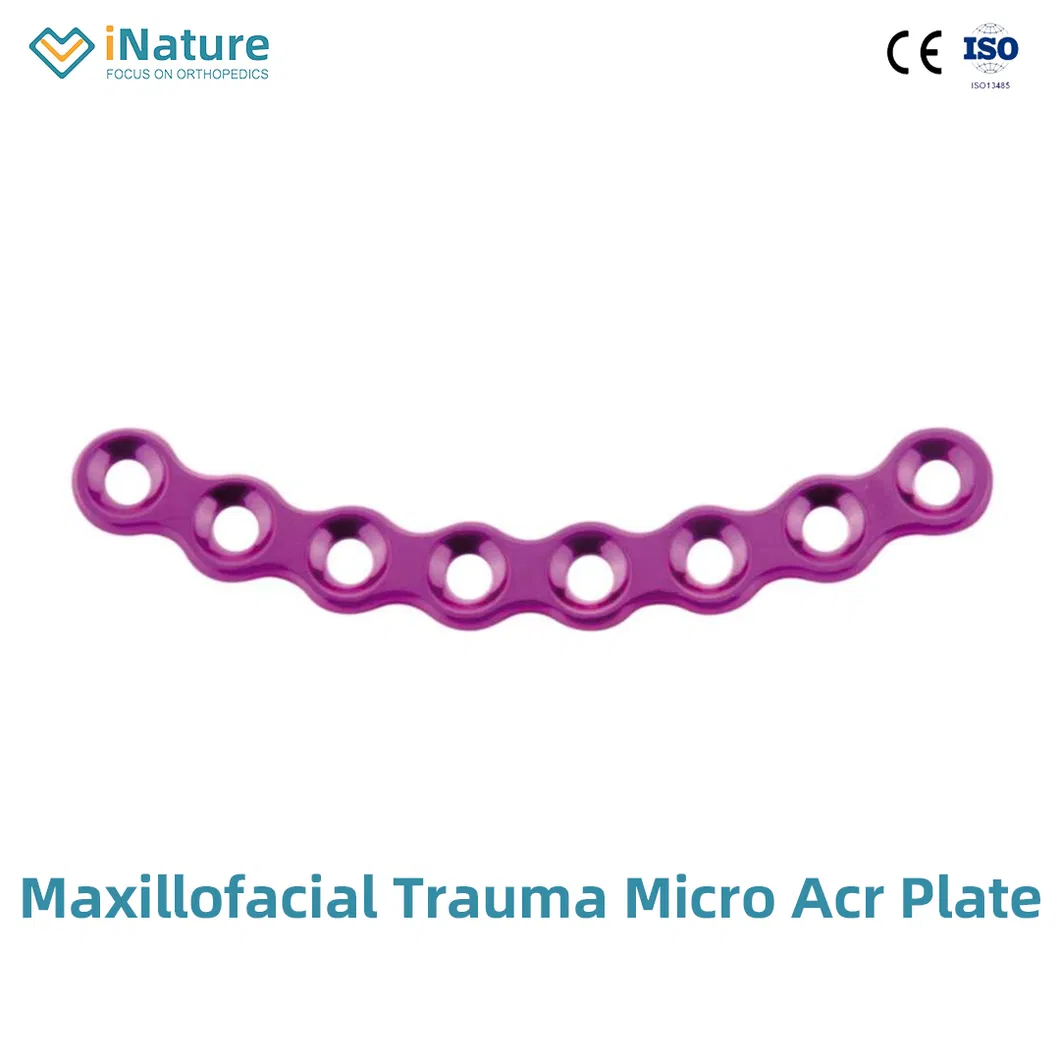

Micro Locking Arc Plate	10.01.02.06013000	0906	6 holes, 0.6mm, 24mm

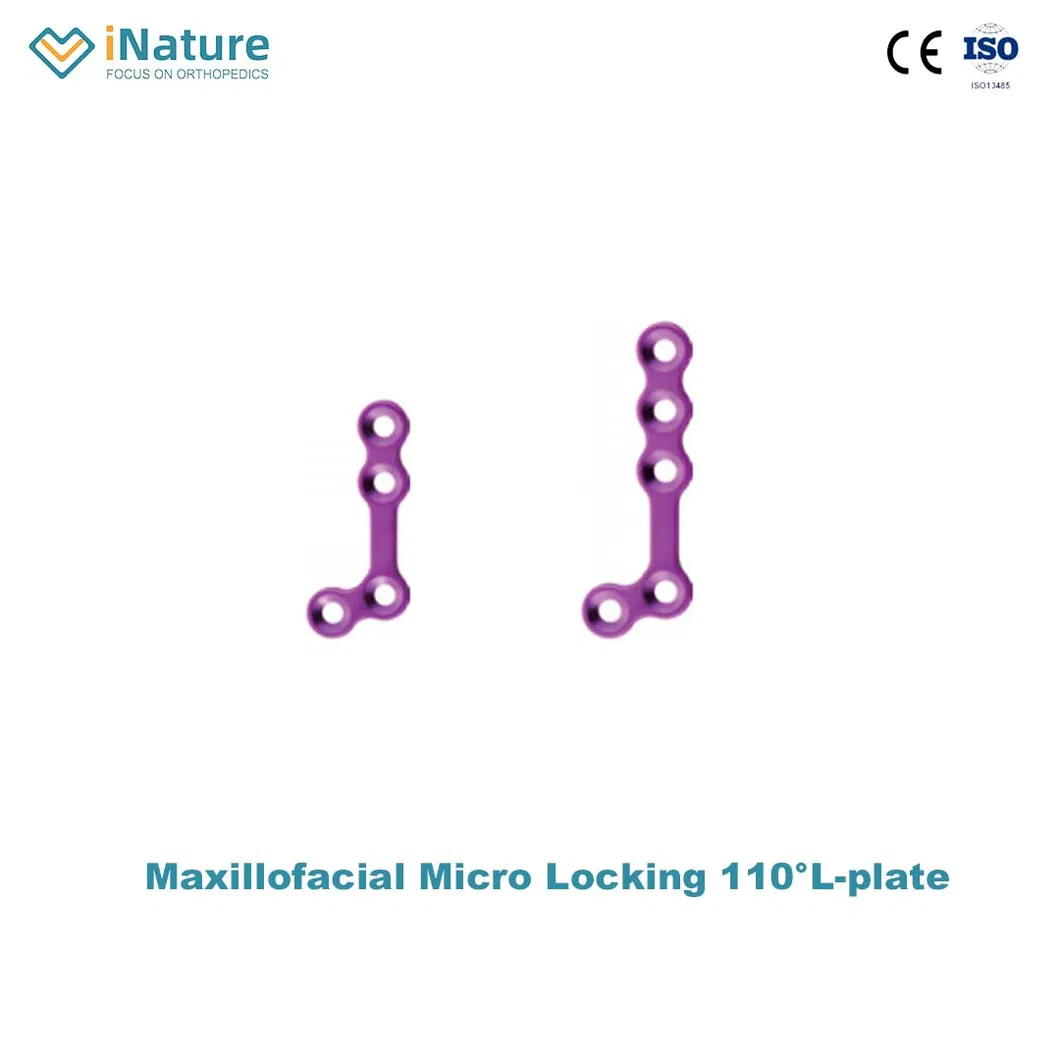

Micro Locking 110°L-plate	10.01.02.04016000	0911	4 holes, 0.6mm, 16mm

*All prices are for reference only. Exact price will be based on the latest quotation.

Frequently Asked Questions

What material are these maxillofacial plates made of?

The plates are manufactured from high-quality Pure Titanium, which is ideal for implant materials and artificial organs due to its biocompatibility.

What are the primary indications for using these locking plates?

They are primarily used for mandible trauma (such as comminuted or unstable fractures) and mandible reconstruction following bone grafts or defects.

Do these plates support both locking and non-locking screws?

Yes, the design allows for both locking and non-locking methods. Locking screws provide stable internal fixation, while non-locking screws allow for angle and compression fixation.

What certifications do the products carry?

All products are Class III instrument classified and hold CE and ISO 13485 certifications.

Is technical support available after purchase?

Yes, we provide online technical support as part of our after-sales service, and the products come with a one-year warranty.

How are the implants packaged for transport?

The products are provided in a sterile package and transported in secure cartons to ensure safety and hygiene.
